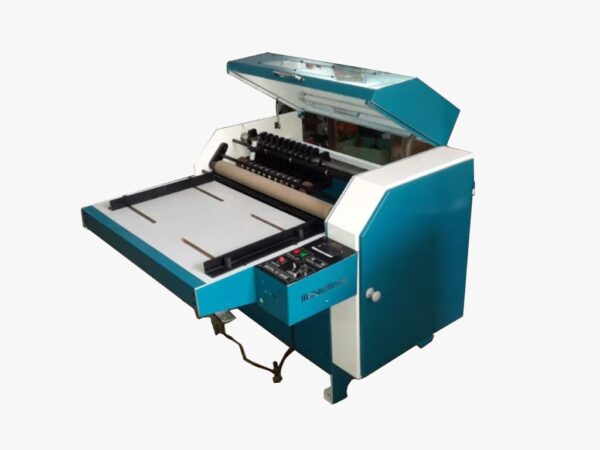

Sticker Half Cutting Creasing Machine

ROTARY DISC SLITTING LABEL CUTTING :

This machine cuts the upper printed paper first in one direction & then this sheet is cut perpendicular to the first direction without cutting the back paper to a perfect set size of the label.
For an even cutting depth the machine is fitted with hardened and grinded steel bar with disc type cutting blade & setting the cutting depth of cutter up to the thickness of the upper printed sheet is very easy & simple by means of a knob & the speed of cutting is controlled electronically by a potentiometer fitted on controll penal.

PERFORATER,CREASER :

This Half Cut Sticker Label Cutting Machine is a multipurpose & can be easily converted to ROTARY DISC SLIT PERFORATER & CREASER for perforation as on Bankers cheque book & creasing, bending on wedding cards & Book title creasing.

STANDARD SUPPLY & ORDER :

The Size of machine is 24″
1 Perforater,1 Creaser & 6 Half Cut Cutters are standard supply.
It may be interchanged to each other as per customer requirements.
The machine can be ordered for different numbers of perforating discs,may be four or six or eight.
Eight holders is standrad supply,it may be all half cuts or Creaser or Perforaters.
Minimum gap between two cutters is 3/4″& about 23 holders can be fitted on this machine as an optional requirements which is most useful in Half cutting.While ordering please specify your requirement clearly for what main purpose the machine is needed.The machine can be taylor made to any size and any requirements as mentioned.

ELECTRIC POWER :

The machine runs with DC Motor 1/2H.P.All electrical controll is inbuilt in the machine electric penal. The customer simply need the 220 Volts AC supply 50Hz as a standard Domestic supply in India.Simply plug in and run the machine.
